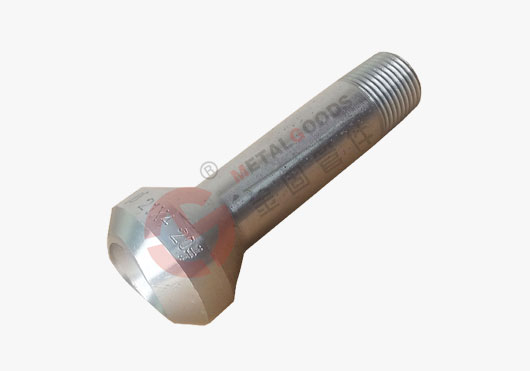

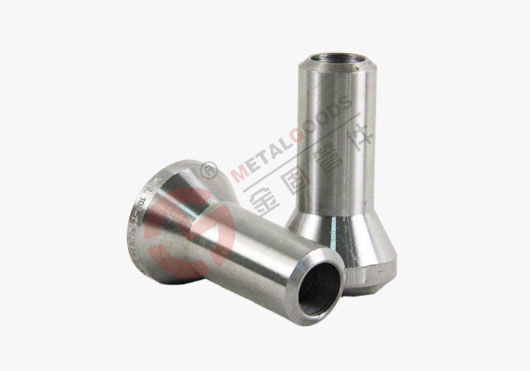

短管管座 | Nipolet
| Size/尺寸 | 1/2" NPS TO 2" NPS |
| Class/压力等级 | 3000LB, 6000LB, (STD, SCH80/XS, SCH160) |

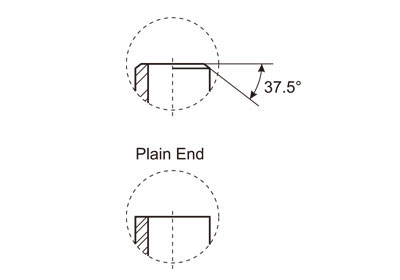

| Type/连接形式 | Buttweld/对焊、Plain/平端、Threaded/螺纹 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | MSS SP-97、GB/T19326-2022 |
| Stainless Steel/不锈钢 | ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
 |  |

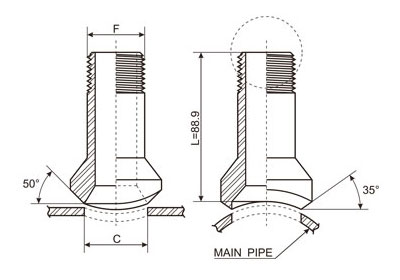

| Outlet Pipe | C | F | |
| 3000lb | 6000lb | ||
| 1/2" | 23.8 | 13.8 | 21.3 |
| 3/4" | 30.2 | 18.9 | 26.7 |
| 1" | 36.5 | 24.3 | 33.4 |
| 1-1/4" | 44.5 | 32.5 | 42.2 |
| 1-1/2" | 50.8 | 38.1 | 48.3 |
| 2" | 65.1 | 49.2 | 60.3 |
(1) Dimensions in Millimeters.
(2) Thread in accordance with ASME B1.20.1
(3) Dimensions may vary according to the customer's and manufacturer's requirement.
